A transformer cannot be checked on arrival. It is checked at the plant, on a high-voltage test floor, before it is crated. Here are the test facilities of our qualified partner factories, the tests that are actually run, and the points where we are physically present.

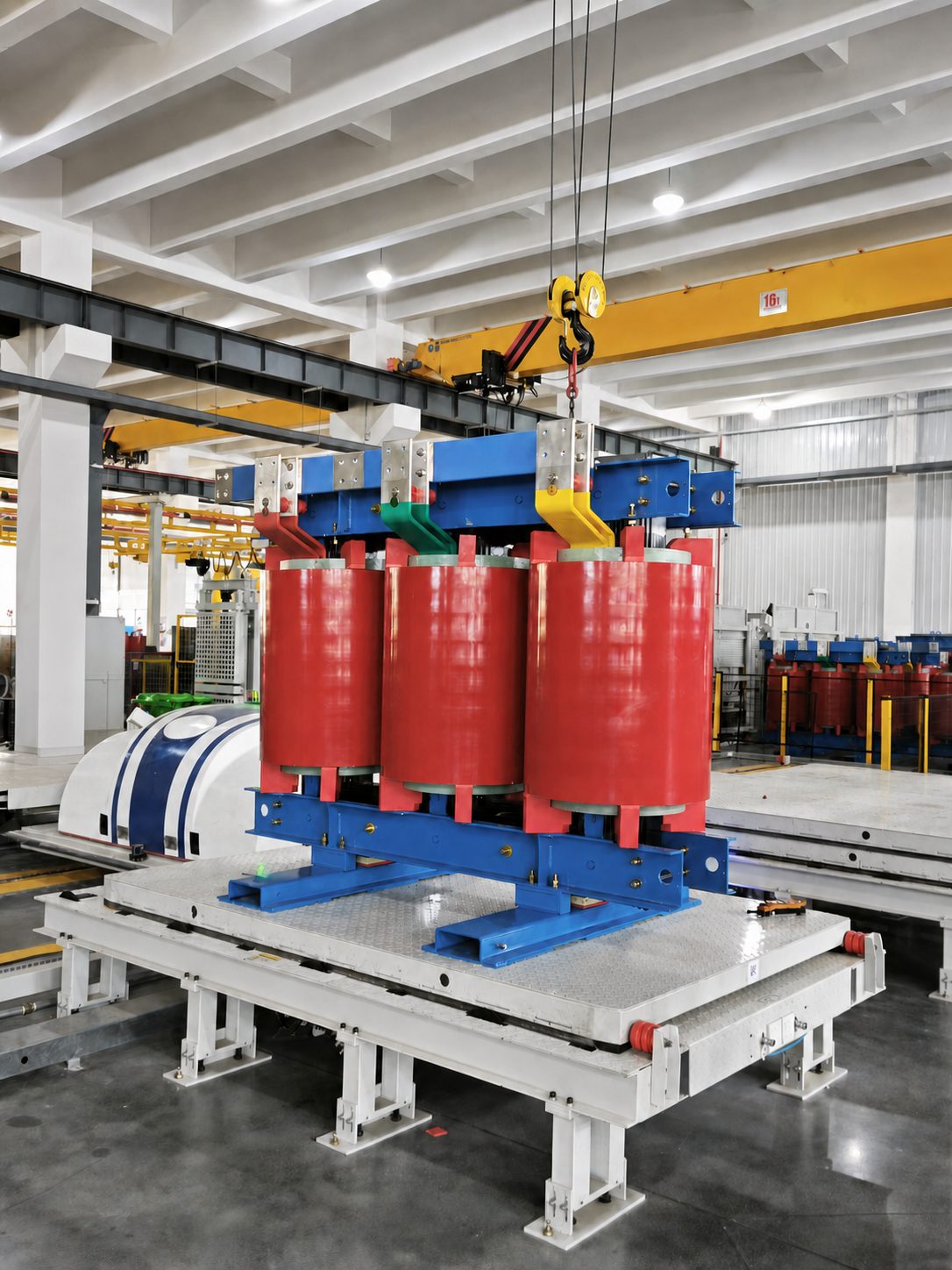

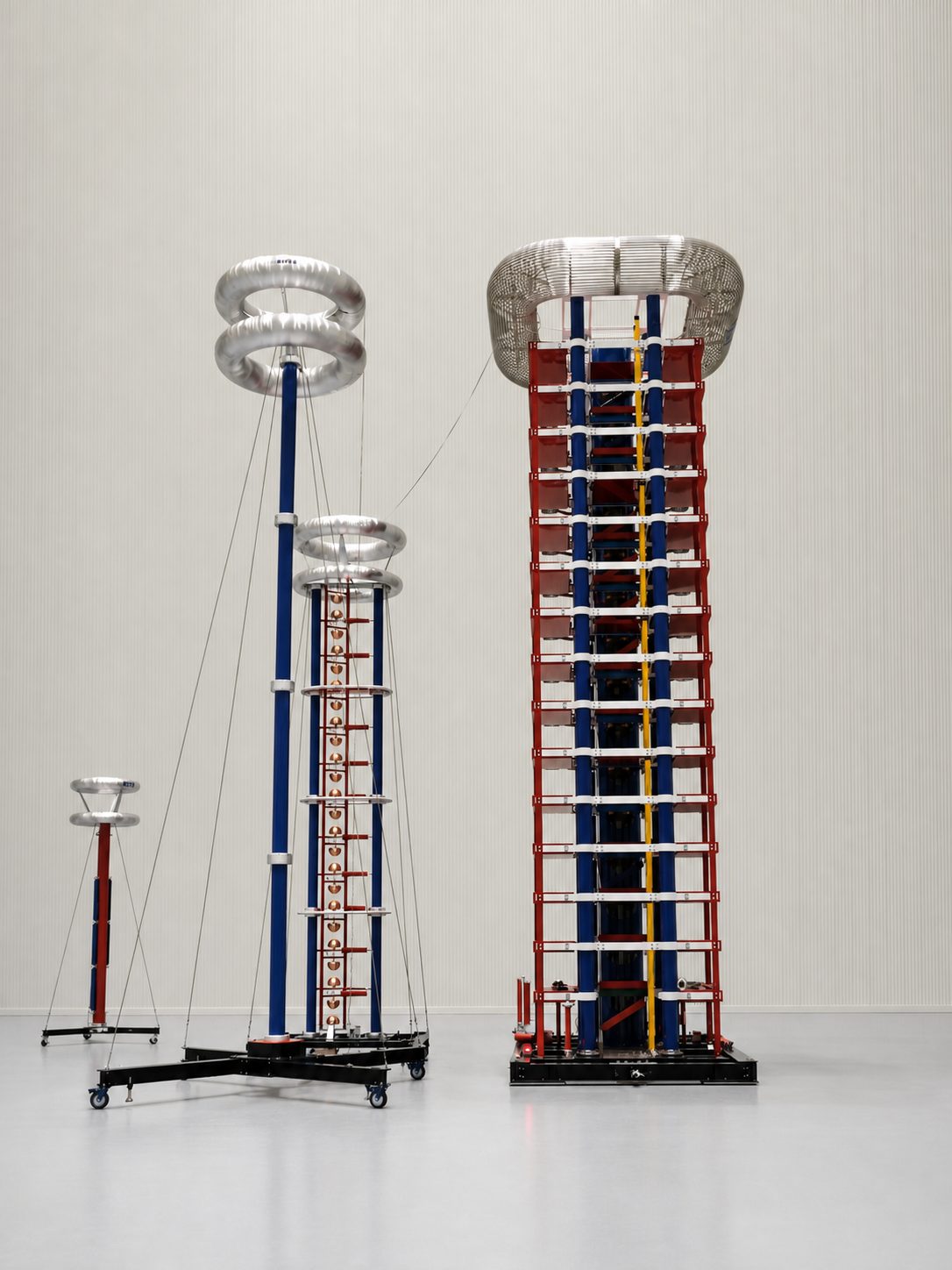

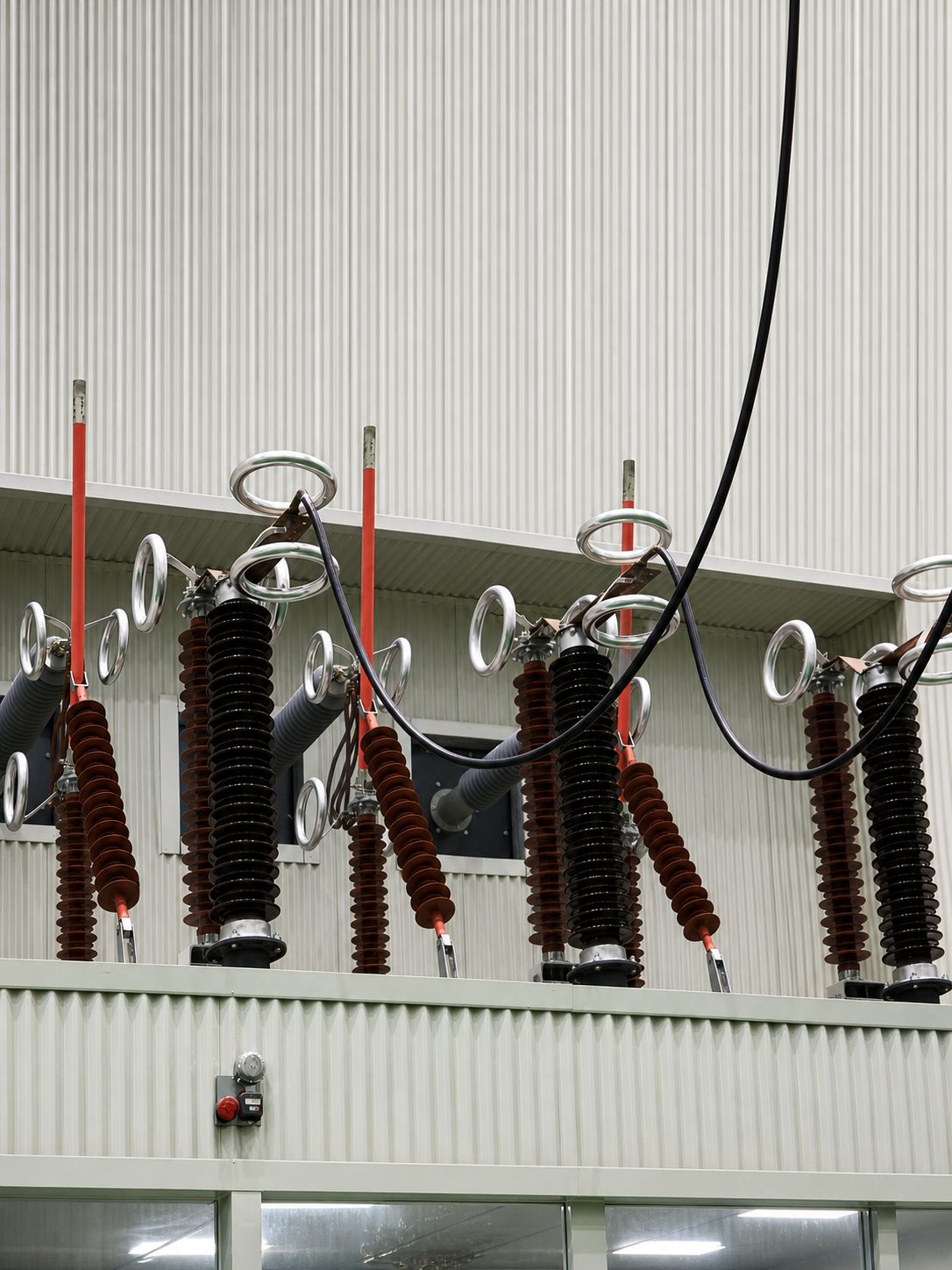

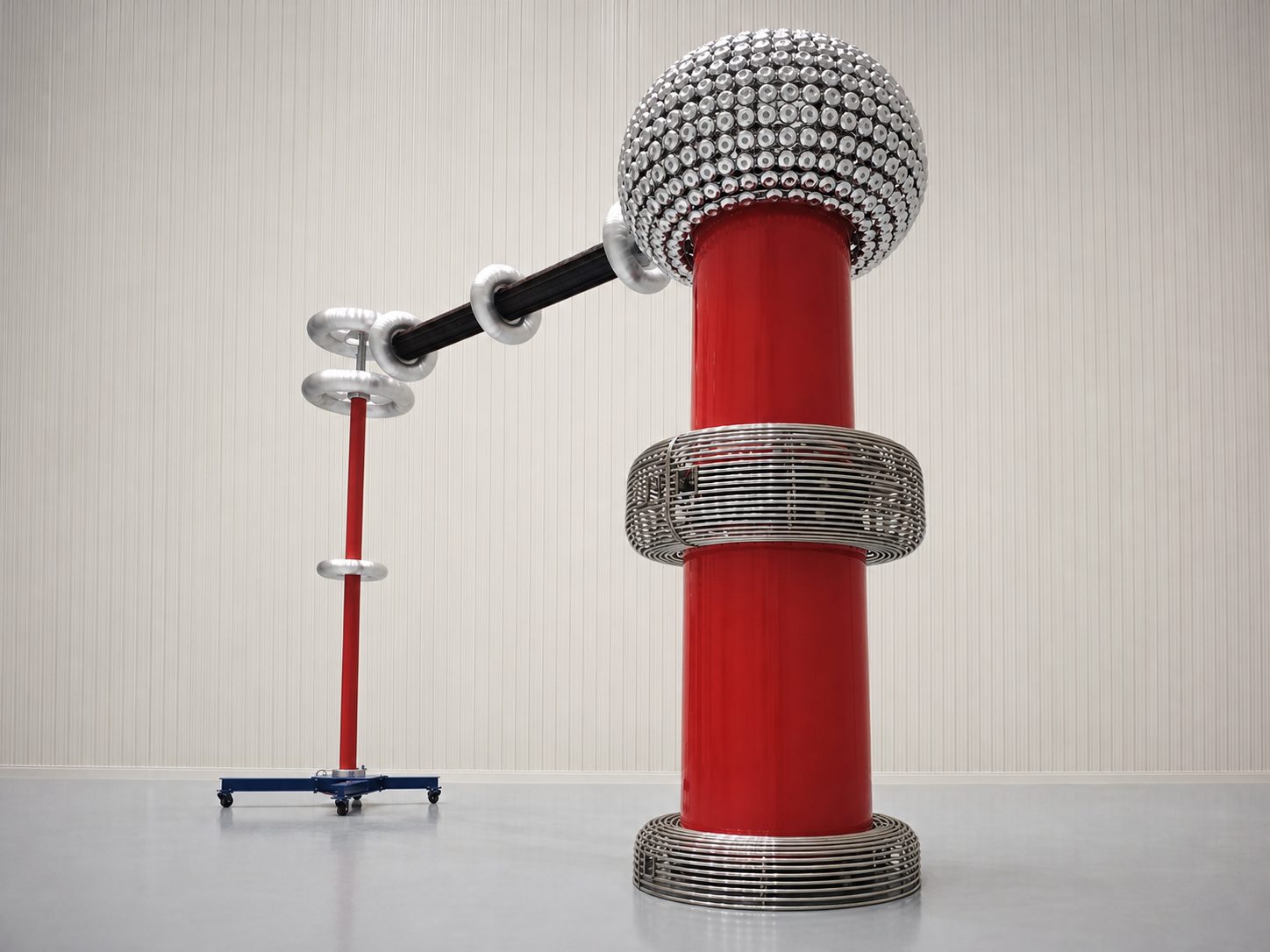

Dielectric testing cannot be improvised: it needs a dedicated shielded hall, clearances of several metres, and the means to generate very high voltage. It is the first thing we look at when we qualify a plant — if it cannot run the test in-house, it cannot guarantee the result.
Routine tests as defined by IEC 60076-1 are performed on every unit, not on a sample. They are recorded in a named test report carrying the serial number of your transformer.
| Ratio & vector group | Ratio checked on every tap and the vector group (Dyn11…) |
|---|---|
| Winding resistance | Detects a cold joint, a broken strand, a wrong conductor section |
| No-load loss & no-load current | The value guaranteed against Tier 2 — this is where it is decided |
| Load loss & short-circuit impedance | Uk in %, decisive for parallel operation and fault-current calculation |
| Applied voltage (power frequency) | Withstand of the main insulation, winding to winding and winding to earth |
| Induced voltage | Withstand of the turn-to-turn and layer-to-layer insulation |

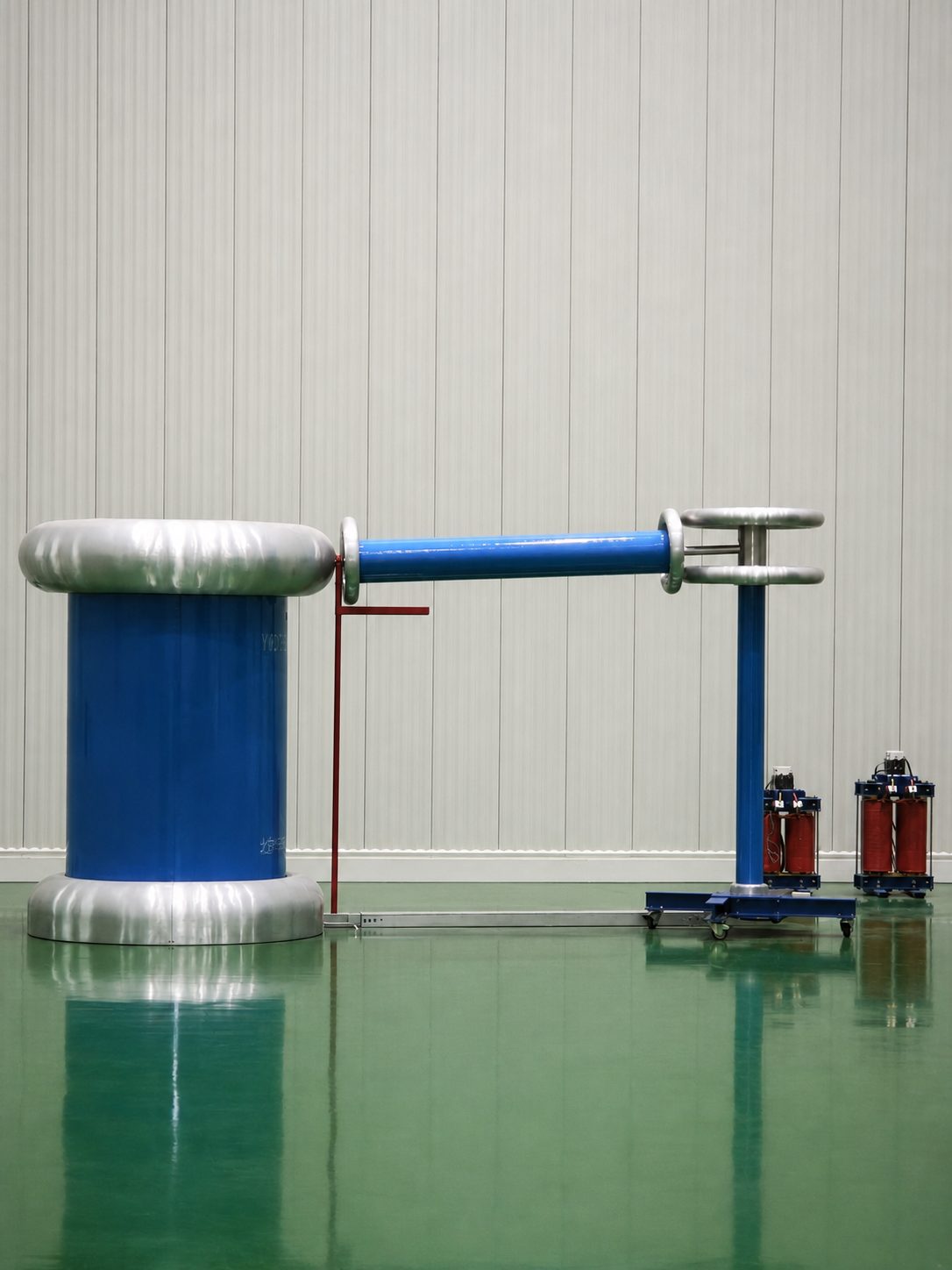

| Partial discharge (dry-type / cast resin) | Measured in pC; on a dry-type unit this is the number one ageing indicator |
| Leak tightness (oil-immersed) | Tank pressurised, gaskets and valves checked |
Type tests (temperature rise, lightning impulse, short-circuit withstand) and special tests: on a unit representative of the design, or to order. See the guide on FAT & witness testing.
A test report is only worth something if somebody watched the test happen. Our inspection plan defines hold points — stages the plant cannot pass without our written release:
On request, these tests can also be witnessed by an independent third party (KEMA, TÜV, DNV, Bureau Veritas) or by your own representative. The option is selectable in the configurator.
A large share of the non-conformities we raise are not electrical. They concern the enclosure, the accessories and the marking — and they cost just as much to fix once the unit is on site.
Component detail on the cast resin and spare parts pages.
These documents govern the warranty: the commissioning record returned within 30 days triggers the extension to 30 months.
General overview of the facilities and the approach. The exact test list, guaranteed values and acceptance protocol are fixed in the specification for each order.
Routine tests as defined by IEC 60076-1 are performed on every unit produced, and the test report carries your unit's serial number. Type tests (temperature rise, lightning impulse, short-circuit withstand) are performed on a unit representative of the design, not on every unit.
Yes. You can attend, send your representative, or appoint a third-party body (KEMA, TÜV, DNV, Bureau Veritas). The option is selectable in the configurator and triggers 10 working days' notice before the test campaign.
The hold point stops production: the unit can neither be packed nor shipped until the non-conformity is closed. A non-conformity report is opened, the root cause is addressed, and the affected test is re-run in full.
Yes, it is a routine test on cast resin units. The level measured in pC is the best early indicator of an encapsulation defect, and therefore of the real service life of the winding.
